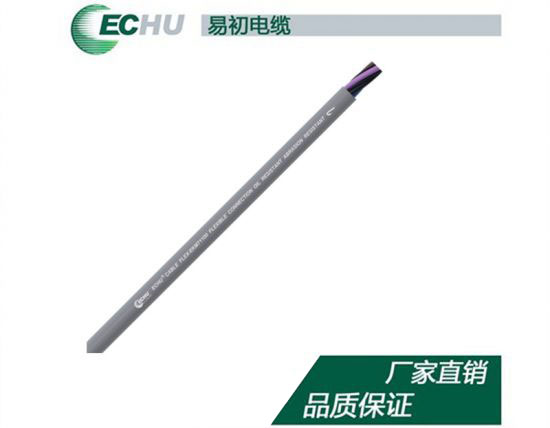

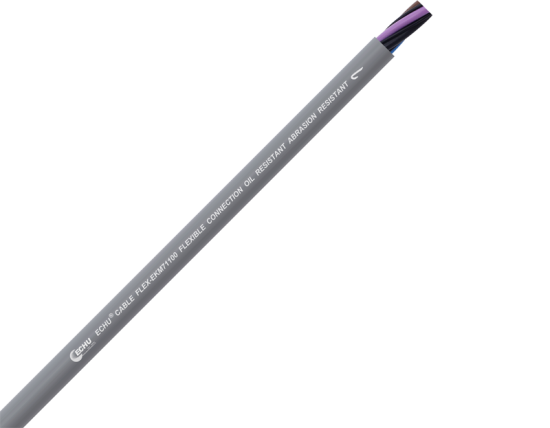

高度柔性耐弯曲电缆EKM71100

发布时间:2022-07-27 14:12:54人气:853


产品特性: 弯曲寿命2000万次以上。

防水、防油、耐寒、抗紫外线、耐磨、阻燃,适用于干燥或潮湿的室内,无强应力缓释或强制引导的自由连续往复运动下的安装,特别是工业使用环境下的频繁弯曲场合,如木工机械、机床加工设备、物流输送系统、起重机场合等。




导体:多股超细精绞无氧铜丝

绝缘:特殊混合PVC绝缘

颜色:≤0.5mm颜色表示,棕、黑、蓝、紫、粉红、橙

         >0.5mm黑色数字白色号码编号,3芯以上带有黄绿接地线 (黄绿可选)

护套:特殊改性PVC护套

          黑色(RAL9005)   灰色(RAL7001)   橙色(RAL2003)

额定电压:截面<0.5mm²:300/300V

                 截面≥0.5mm²::300/500V

测试电压:2000V

使用温度范围:  固定安装:-30°C至+90°C


说明:因拖链电缆属于特种电缆,受到敷设拖链的弯曲半径、移动速度、弯曲频率等技术及环节影响,选型时请参考工作人员专业建议,欢迎来电商讨!

规格列表(部分):

EKM71100 2*0.1 EKM71100 3*0.1 EKM71100 4*0.1 EKM71100 5*0.1 EKM71100 6*0.1 EKM71100 7*0.1 EKM71100 8*0.1 EKM71100 9*0.1 EKM71100 10*0.1 EKM71100 12*0.1 EKM71100 14*0.1 EKM71100 16*0.1 EKM71100 20*0.1 EKM71100 30*0.1 EKM71100 30*0.1



EKM71100 2*0.14 EKM71100 3*0.14 EKM71100 4*0.14 EKM71100 5*0.14 EKM71100 6*0.14 EKM71100 7*0.14 EKM71100 8*0.14 EKM71100 10*0.14 EKM71100 12*0.14 EKM71100 14*0.14 EKM71100 16*0.14 EKM71100 18*0.14 EKM71100 20*0.14 EKM71100 30*0.14



EKM71100 2*0.2 EKM71100 3*0.2 EKM71100 4*0.2 EKM71100 5*0.2 EKM71100 6*0.2 EKM71100 7*0.2 EKM71100 8*0.2 EKM71100 9*0.2 EKM71100 10*0.2 EKM71100 12*0.2 EKM71100 16*0.2 EKM71100 20*0.2 EKM71100 30*0.2



EKM71100 2*0.25 EKM71100 3*0.25 EKM71100 4*0.25 EKM71100 5*0.25 EKM71100 6*0.25 EKM71100 8*0.25 EKM71100 10*0.25 EKM71100 12*0.25 EKM71100 16*0.25 EKM71100 20*0.25



EKM71100 2*0.3 EKM71100 3*0.3 EKM71100 4*0.3 EKM71100 5*0.3 EKM71100 6*0.3 EKM71100 7*0.3 EKM71100 8*0.3 EKM71100 10*0.3 EKM71100 12*0.3 EKM71100 14*0.3 EKM71100 16*0.3 EKM71100 18*0.3 EKM71100 20*0.3



EKM71100 2*0.34 EKM71100 3*0.34 EKM71100 4*0.34 EKM71100 5*0.34 EKM71100 6*0.34 EKM71100 7*0.34 EKM71100 8*0.34 EKM71100 10*0.34 EKM71100 12*0.34 EKM71100 14*0.34 EKM71100 16*0.34 EKM71100 18*0.34 EKM71100 20*0.34



EKM71100 2*0.4 EKM71100 3*0.4 EKM71100 4*0.4 EKM71100 5*0.4 EKM71100 6*0.4 EKM71100 7*0.4 EKM71100 8*0.4 EKM71100 10*0.4 EKM71100 12*0.4 EKM71100 20*0.4



EKM71100 2*0.5 EKM71100 3*0.5 EKM71100 4*0.5 EKM71100 5*0.5 EKM71100 6*0.5 EKM71100 7*0.5 EKM71100 8*0.5 EKM71100 9*0.5 EKM71100 10*0.5 EKM71100 12*0.5 EKM71100 14*0.5 EKM71100 16*0.5 EKM71100 18*0.5 EKM71100 20*0.5 EKM71100 24*0.5 EKM71100 25*0.5 EKM71100 30*0.5



EKM71100 2*0.75 EKM71100 3*0.75 EKM71100 4*0.75 EKM71100 5*0.75 EKM71100 6*0.75 EKM71100 7*0.75 EKM71100 8*0.75 EKM71100 9*0.75 EKM71100 10*0.75 EKM71100 12*0.75 EKM71100 13*0.75 EKM71100 14*0.75 EKM71100 15*0.75 EKM71100 16*0.75 EKM71100 18*0.75 EKM71100 20*0.75 EKM71100 24*0.75 EKM71100 25*0.75 EKM71100 30*0.75



EKM71100 2*1.0 EKM71100 3*1.0 EKM71100 4*1.0 EKM71100 5*1.0 EKM71100 6*1.0 EKM71100 7*1.0 EKM71100 8*1.0 EKM71100 9*1.0 EKM71100 10*1.0 EKM71100 12*1.0 EKM71100 14*1.0 EKM71100 16*1.0 EKM71100 18*1.0 EKM71100 20*1.0 EKM71100 24*1.0 EKM71100 25*1.0 EKM71100 30*1.0



EKM71100 2*1.5 EKM71100 3*1.5 EKM71100 4*1.5 EKM71100 5*1.5 EKM71100 6*1.5 EKM71100 7*1.5 EKM71100 8*1.5 EKM71100 9*1.5 EKM71100 10*1.5 EKM71100 12*1.5 EKM71100 14*1.5 EKM71100 16*1.5 EKM71100 18*1.5 EKM71100 20*1.5 EKM71100 24*1.5 EKM71100 25*1.5 EKM71100 30*1.5



EKM71100 2*2.0 EKM71100 3*2.0 EKM71100 4*2.0 EKM71100 5*2.0 EKM71100 6*2.0 EKM71100 7*2.0 EKM71100 8*2.0 EKM71100 9*2.0 EKM71100 10*2.0 EKM71100 12*2.0 EKM71100 14*2.0 EKM71100 16*2.0 EKM71100 18*2.0 EKM71100 20*2.0 EKM71100 24*2.0 EKM71100 25*2.0 EKM71100 30*2.0



EKM71100 2*2.5 EKM71100 3*2.5 EKM71100 4*2.5 EKM71100 5*2.5 EKM71100 6*2.5 EKM71100 7*2.5 EKM71100 8*2.5 EKM71100 9*2.5 EKM71100 10*2.5 EKM71100 12*2.5 EKM71100 14*2.5 EKM71100 16*2.5 EKM71100 18*2.5 EKM71100 20*2.5 EKM71100 24*2.5 EKM71100 25*2.5 EKM71100 30*2.5



EKM71100 2*4.0 EKM71100 3*4.0 EKM71100 4*4.0 EKM71100 5*4.0 EKM71100 6*4.0 EKM71100 7*4.0 EKM71100 8*4.0 EKM71100 9*4.0 EKM71100 10*4.0



EKM71100 2*6.0 EKM71100 3*6.0 EKM71100 4*6.0 EKM71100 5*6.0 EKM71100 6*6.0 EKM71100 7*6.0 EKM71100 8*6.0 EKM71100 9*6.0 EKM71100 10*6.0



EKM71100 2*8.0 EKM71100 3*8.0 EKM71100 4*8.0 EKM71100 5*8.0 EKM71100 6*8.0 EKM71100 10*8.0

EKM71100 2*10.0 EKM71100 3*.0 10EKM71100 4*.0 10EKM71100 5*.0 10EKM71100 6*.010

EKM71100 2*16 EKM71100 3*16 EKM71100 4*16 EKM71100 5*16

EKM71100 2*25 EKM71100 3*25 EKM71100 4*25 EKM71100 5*25

EKM71100 2*35 EKM71100 3*35 EKM71100 4*35 EKM71100 5*35
